Smart Size Tester
Smart Size Tester

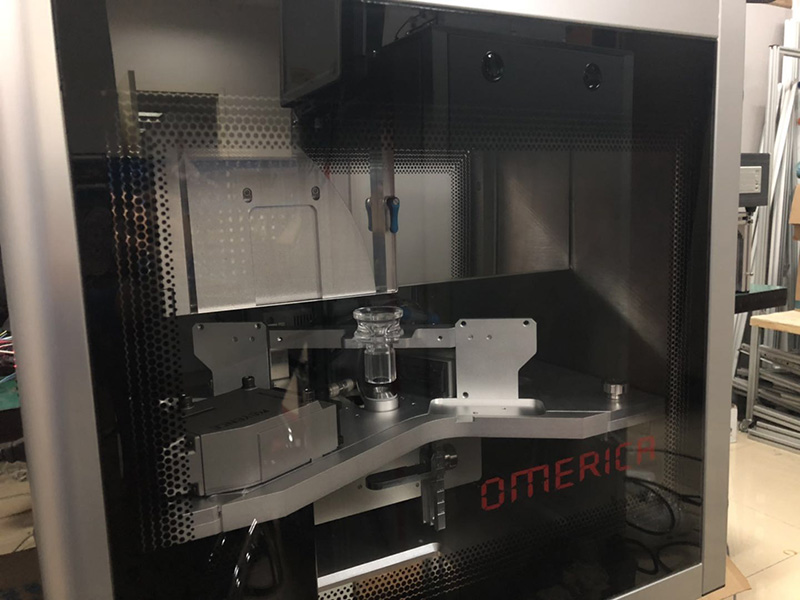

The CH-S size tester chooses thehigh-precision laser (KEYENCE 7000 Series) and precision pneumatic slideas the core components. After the samples are transferred to the measurement area, and the laser detects the samples, the centering clamping device is started to ensure that the sample and the circumferential laser head are vertical, and the step motor drives the sample to rotate 360°.
The CH-S size tester chooses thehigh-precision laser (KEYENCE 7000 Series) and precision pneumatic slideas the core components. After the samples are transferred to the measurement area, and the laser detects the samples, the centering clamping device is started to ensure that the sample and the circumferential laser head are vertical, and the step motor drives the sample to rotate 360°. The laser controller synchronously collects the diameter data witha total of 2400 times shots and then calculates the physical parameters such as the circumference and roundness of the sample.
Testing item:
● Size( Circumference, Diameter)
● Roundness
?
